Analog PH Electrode Suitable For Water Purification >5μS/Cm

Μεγάλες Εικόνας : Analog PH Electrode Suitable For Water Purification >5μS/Cm

Λεπτομέρειες:

Τόπος καταγωγής:	ΚΙΝΑ
Μάρκα:	Daruifuno
Πιστοποίηση:	CE, ISO
Αριθμό μοντέλου:	ASP121E

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1
Τιμή:	USD25-250
Συσκευασία λεπτομέρειες:	ΧΑΡΤΟΚΙΒΩΤΙΟ
Χρόνος παράδοσης:	3-10 εργάσιμες ημέρες
Όροι πληρωμής:	T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς:	10000 σύνολα το μήνα

Επικοινωνία

Analog PH Electrode Suitable For Water Purification >5μS/Cm

περιγραφή

Όνομα προϊόντος:	Αισθητήρας pH	Εύρος μέτρησης:	0~14pH
Μηδέν (E0) ph:	± 0,25ph	ΠΑΣΑΛΕΑΦΩ%:	＞ 95%
Πίεση εργασίας:	0-6 bar	Θερμοκρασία εργασίας:	0~100℃
Μονάδα θερμοκρασίας:	PT100, PT1000, NTC10K προσαρμοσμένα	Διάσταση εγκατάστασης:	PG13.5
Ουράς:	Ενσωματωμένος ή διαχωρισμός	Σύρμα:	Τυποποιημένα 5 μέτρα
Εφαρμογή:	καθαρό νερό> 5μS/cm
Επισημαίνω:	Analog pH electrode for water purification , pH sensor with >5μS/cm compatibility , ORP sensor for purified water

Analog PH Electrode Suitable For Water Purification >5μS/Cm

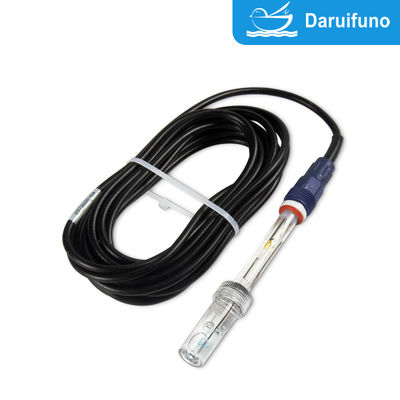

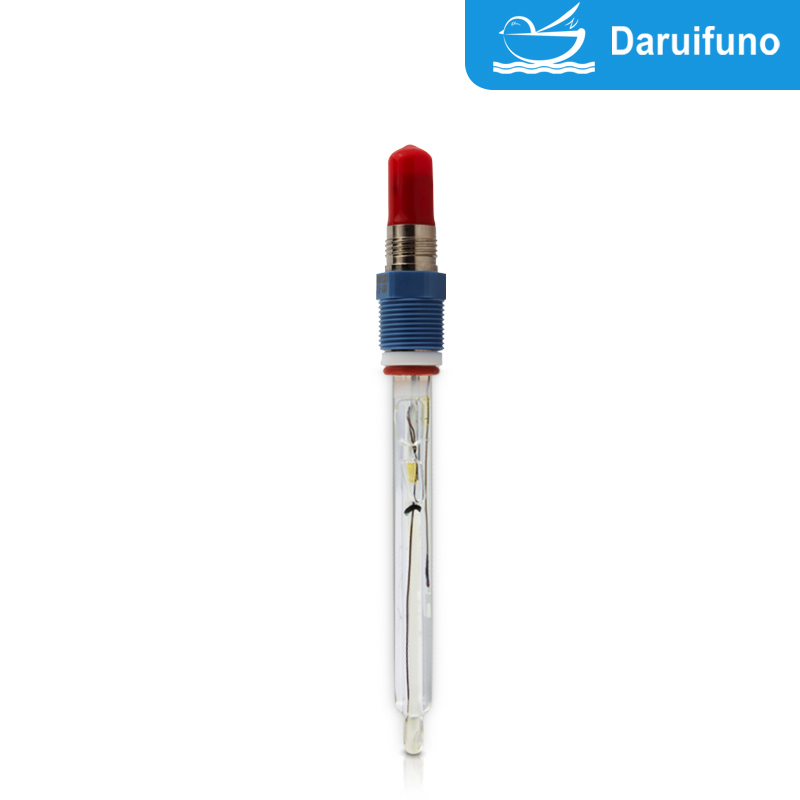

Daruifuno ASP121E Analog pH Sensor

The ASP121E pH sensor is a versatile and durable choice, engineered for a wide measuring range of 0 to 14 pH. It utilizes a low-impedance cylindrical glass membrane to deliver fast and stable readings.

Precision and Longevity

A key feature is its sophisticated Ag/AgCl reference system. This design incorporates a double salt bridge and a KCl gel electrolyte, significantly extending the sensor's lifespan and ensuring reliable performance in challenging environments where conventional single-junction electrodes often fail.

Built for Reliability and High Performance

Constructed with durability in mind, the electrode features a resilient glass body and a distinctive dot-shaped ceramic junction (frit), offering excellent resistance to chemical corrosion.

Operating Parameters

Standard Operation: 0°C to 80°C with pressures up to 6 bar
High-Temperature Capability: Up to 100°C for less than 60 minutes at pressures up to 3 bar
Customizable High-Temperature Model: Continuous use up to 100°C or short-term spikes up to 135°C (less than 60 minutes)

Key Technical Specifications

Sensitivity (Slope): Greater than 95%
Zero Point (E0): ±0.25 pH
Temperature Compensation: PT100, PT1000, or NTC10K sensors
Optimal Flow Rate: 0.001 m/s to 0.5 m/s
Physical Specifications: 12 mm diameter * 120 mm length (customizable)
Installation: Standard PG13.5 mounting thread

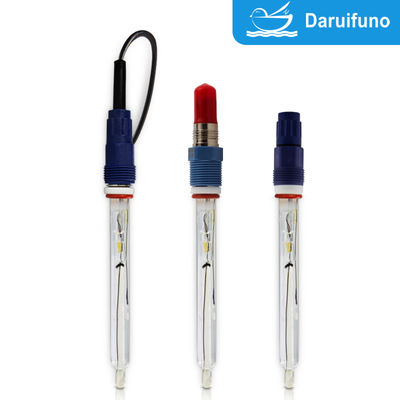

Wiring: Integral or split leads available

Model Specifications

Model	ASP120E	ASP121E	ASP122E	ASP123E	ASP124E
Measuring Object	PH
Measuring Range	0~14pH
Indicator Electrode	low impedance cylindrical glass membrane
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass+Dot-shaped ceramic hole	Glass+Dot-shaped ceramic hole	Glass+Dot-shaped ceramic hole	Glass+Porous tetrafluoro ring	Glass+ceramic sand core
Working Pressure	Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar
Working Temp.	Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.)
Sample Flow Rate	0.5 m/s ≥ flow velocity ≥ 0.001 m/s
Zero (E0)	±0.25pH
SLOP%	＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: diameter 12mm/Length 120mm (customized)
Installation Thread	PG13.5
Tail Lead	Integral or split
Application	Strong acid and alkali	Normal temp. pure water >5μS/cm	Harsh industrial process*	Normal temp. desulfurization or viscous slurry	Hydrofluoric acid with concentration ≤4000ppm

Model	ASP125E	ASP126E	ASP127E	ASR120E	ASP128E
Measuring Object	PH	PH	PH	ORP	PH
Measuring Range	0~14pH	0~14pH	0~14pH	±2000mV	0~14pH
Indicator Electrode	low impedance cylindrical glass membrane	low impedance cylindrical glass membrane	low impedance cylindrical glass membrane	Platinum	glass membrane
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass+ceramic sand core
Working Pressure	Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar			max. 0~6bar
Working Temp.	Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.)			-15~80℃, continuous work
Sample Flow Rate	0.5 m/s ≥ flow velocity ≥ 0.001 m/s
Zero (E0)	±0.25pH
SLOP%	＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: diameter 12mm/Length 120mm (customized)
Installation Thread	PG13.5
Tail Lead	Integral or split
Application	Strong acid and alkali	Harsh conditions &high pollution	Fermentation process	High temp. Industrial process	Low temp.

Features & Advantages

Large capacity reference for extended service life
Optional cleaning connector for underwater maintenance
Available with PTFE protective cover and self-cleaning interface
Self-cleaning function enhances stability, accuracy, and reliability
Reduces maintenance costs
Ideal for Pure Water >5μS/Cm

Mounting Flexibility

Sidewall Mounting: Ideal for large tanks and vessels
Top Flange Mounting: Perfect for sealed reactors
Pipe/Flow Cell Mounting: For in-line measurements
Submersible Mounting: For open tanks and channels
Manual Retractable Holder: Enables maintenance without process shutdown

Enhanced Durability with PTFE Sheath

The optional PTFE (Teflon) sheath features 3/4" NPT threads for easy attachment to mounting accessories, ensuring seamless integration across various applications.

Application For Pure Water >5μS/Cm
